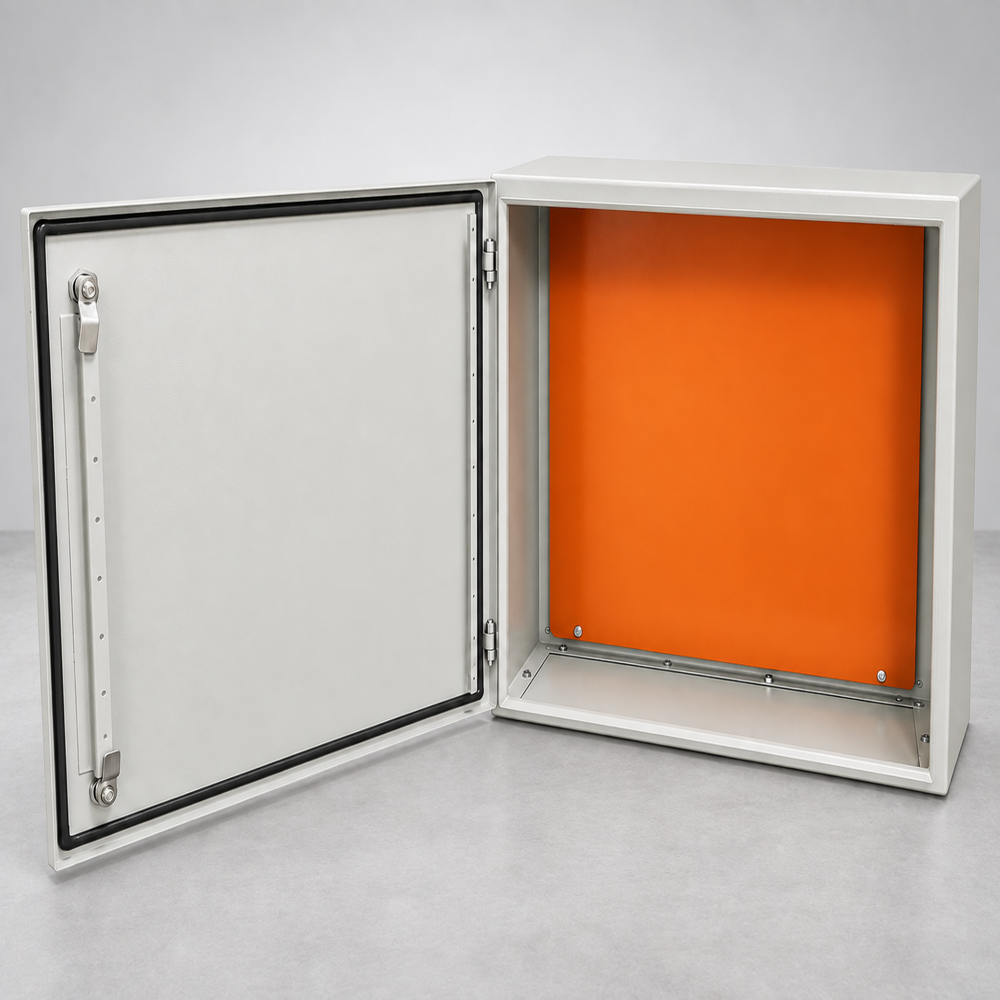

Send InquiryJ-CE : compact enclosure
Price 2500 INR/ Unit
MOQ : 10 Units
J-CE : compact enclosure Specification
- Product Type
- Compact Electrical Enclosure
- Protection Level
- IP55
- Surface Treatment
- Powder Coating
- Thickness
- 1.6 Millimeter (mm)
- Paint Finishing
- Structure
- Display Type
- J-CE
- Material
- CRCA steel
J-CE : compact enclosure Trade Information
- Minimum Order Quantity
- 10 Units
- Payment Terms
- Cash on Delivery (COD)
- Supply Ability
- 100 Units Per Month
- Delivery Time
- 1 Week
- Main Domestic Market
- All India
About J-CE : compact enclosure
THE J-CE SERIES
A comprehensive range of compact steel enclosures in CRCA draw-quality sheet, engineered to protect electrical and electronic equipment in industrial and commercial environments. Spanning 250 mm to 1500 mm in single- and double door configurations, the series is the ideal housing for junction boxes, control panels, automation cabinets and distribution boards.
KEY FEATURES
CRCA Mild Steel Construction : Cold-rolled close-annealed steel for superior rigidity and corrosion resistance.
IP55 Protection as Standard : Dust-tight and protected against water jets from any direction; IP65 available on request.
Powder Coating : In-house 7-tank pre-treatment hot process with RAL 7035 structure finish.
IEC 60529 / IS 2147 Compliant : Manufactured and tested to international ingress-protection standards.
Removable Mounting Plate : Powder-coated mounting plate included as standard; zinc coated steel available as option.
Secure Locking : 1 3 door locks per size; 3-point locking on 1200 mm and larger enclosures.
34 Standard Sizes : From a 250 250 150 mm junction box to a 1500 1500 400 mm cabinet.
Customisation Available : Cable knockouts, ventilation grilles, special RAL colours and extra locks on request.
GENERAL SPECIFICATIONS : RANGE 250 250 150 mm through 1500 1500 400 mm (H W D)
MATERIAL: CRCA draw-quality sheet (cold-rolled close-annealed)
SHEET THICKNESS: Body & door 1.2 1.6 mm / mounting & gland plate 1.6 2.0 mm (per size)
SURFACE FINISH: Powder coated inside & outside RAL 7035, structure finish
PROTECTION: IP55 standard / IP65 optional IK10 impact rating
STANDARDS: IEC 60529 / IS 2147
DOOR LOCKS: 1 3 locks per size (see selection table); 3-point lock on 1200 mm and larger
MOUNTING PLATE: Powder-coated, removable; zinc-coated steel optional
DOOR GASKET: Foamed-in PU gasket for superior and long-lasting ingress protection
GLAND PLATE: Provided at bottom (IP55)
CABLE ENTRY: Bottom gland plate(s) openings G1 G2, plate size G3 G4 per selection table
WALL MOUNTING: Wall-mounting bracket set available as spare for small and large enclosures
AMBIENT TEMPERATURE: 10 C to +55 C
COLOUR: RAL 7035 standard / custom RAL on request
